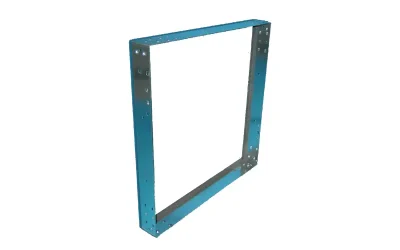

Camfil Type 8 Frame
The Camfil Type 8 Frame is a versatile, heavy-duty holding frame designed to house a wide range of ASHRAE-rated filters. With welded 16-gauge galvanized steel construction, enhanced gasketing, and flexible compatibility, it ensures leak-free performance and long-term durability in demanding HVAC applications.
Questions? We've Got the Answers.
Our team of air filtration experts is ready to assist you.
- Description
Overview of Camfil Type 8 Frame
Built for strength, flexibility, and airtight performance, the Camfil Type 8 Frame accommodates multiple ASHRAE prefilters and final filters in one secure housing. Its rugged welded construction, customizable options, and pre-drilled assembly design simplify installation while ensuring optimal filter sealing. It’s the dependable choice for long-lasting, leak-free filter bank construction.
Durable, Heavy-Duty Construction
Manufactured from 16-gauge welded galvanized steel, the Type 8 Frame delivers exceptional durability for long-term service. For specialized environments, stainless steel or aluminum options are also available. This robust construction resists warping, corrosion, and stress, ensuring stable performance and reliable protection in demanding HVAC systems operating under high pressure or variable conditions.
Enhanced Sealing for Leak-Free Performance
A ¾" filter sealing flange, combined with polyurethane gasketing, provides a secure, airtight seal to eliminate bypass. By ensuring that all system air passes through the installed filters, the frame enhances efficiency and air quality. This reliable sealing system maintains performance in critical environments where leakage cannot be tolerated.
Flexible Filter Compatibility and Easy Assembly
The Type 8 Frame supports multiple filter types, including 1", 2", and 4" panel or pleated filters, plus 6" or 12" rigid filters and headered rigid or pocket filters. Pre-drilled holes allow for fast riveting or bolting, while multiple lances accommodate different fasteners, making installation secure, adaptable, and time-efficient.
